NissanVanette SerenaKVC2305.1994 - 01.1997Body parts869 - rear seat belt (trim)

869 - rear seat belt (trim) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20T (2000 diesel turbo )drive 2WD (two-wheel drive )
Manufacture period05.1994 - 01.1997grade SXtransmission AT (automatic transmission )


Scheme 869-_001 Scheme 869-_002 Scheme 869-_003 Scheme 869-_004 Scheme 869-_005
Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998２ＲＤシート

Open full screen pictureOpen full screen picture
Up to the top

0851061212
87848M - cover, belt anchor
88810M - cover, retractor second LH
88824M - belt assembly, rear seat tongue
88840B - bolt
88840BA - bolt
88842M - belt assembly, rear seat buckle
88842MA - belt assembly, rear seat buckle
88842MB - belt assembly, rear seat buckle
88844M - belt assembly, rear seat tongue RH
88845M - belt assembly, rear seat tongue LH
88899 - plate, tether anchor

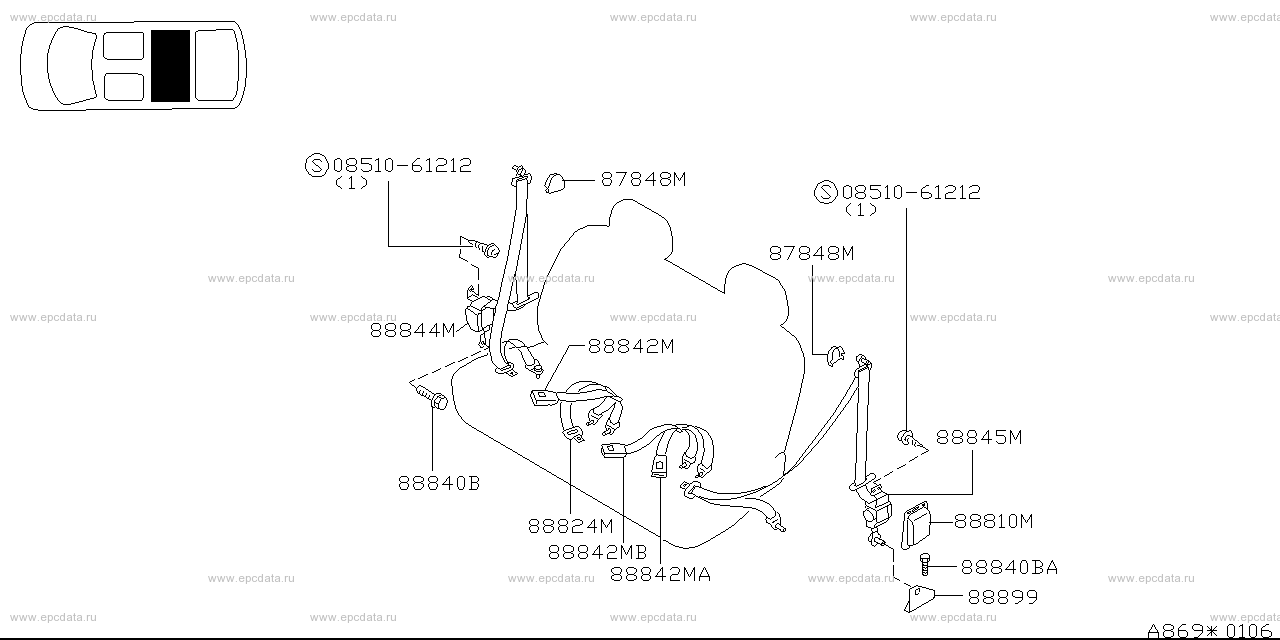

Applies for modelsManufacture periodSpec
W +4DV +5DV08.1993 - 05.19942NDｼｰﾄ (ﾊﾈｱｹﾞｼｰﾄ,ｷｬﾌﾟﾃﾝｼｰﾄ)
W +4DV +5DV05.1994 - 08.19952NDｼｰﾄ (ﾊﾈｱｹﾞｼｰﾄ,ｷｬﾌﾟﾃﾝｼｰﾄ)
W +4DV +5DV08.1995 - 01.19972NDｼｰﾄ (ﾊﾈｱｹﾞｼｰﾄ,ｷｬﾌﾟﾃﾝｼｰﾄ)

Open full screen pictureOpen full screen picture
Up to the top

0851061212
87848M - cover, belt anchor
87850 - bolt, seat belt
88810M - cover, retractor second LH
88840B - bolt
88842M - belt assembly, rear seat buckle
88842MA - belt assembly, rear seat buckle
88844 - belt assembly, rear seat tongue
88844+A - belt assembly, rear seat tongue
88844M - belt assembly, rear seat tongue RH
88845M - belt assembly, rear seat tongue LH
88850 - belt set, rear seat center

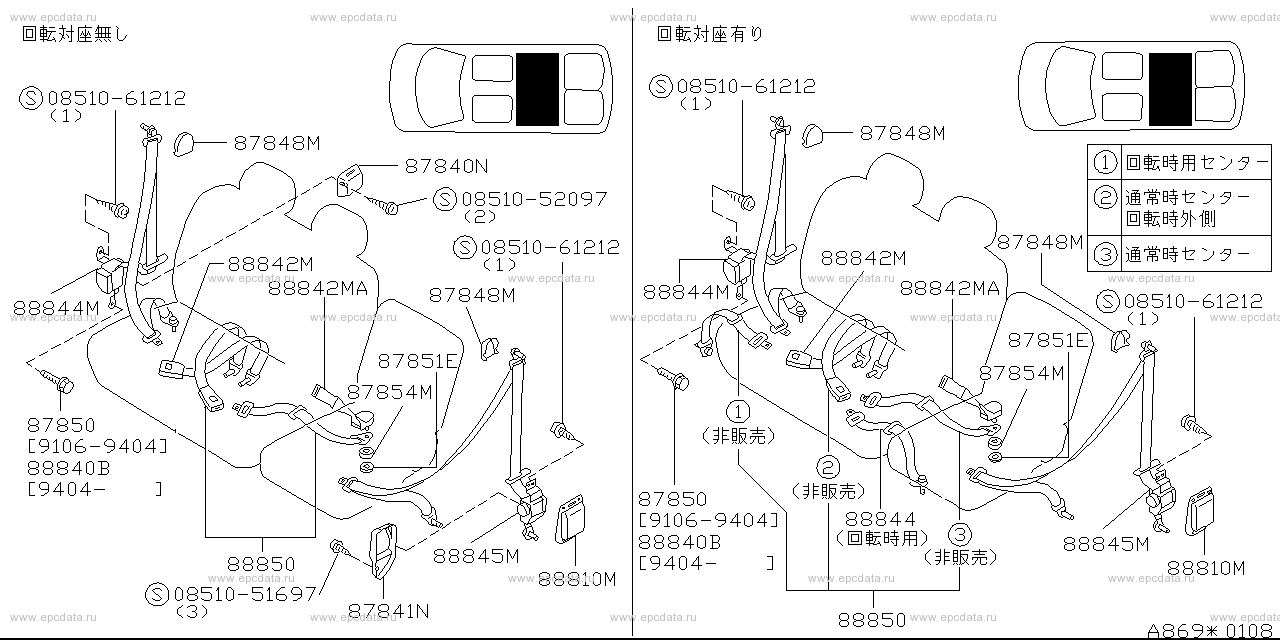

Applies for modelsManufacture periodSpec
W +4DV +5DV08.1993 - 05.19942NDｼｰﾄ (ﾍﾞﾝﾁ2ﾆﾝｶﾞｹ+ｽﾍﾟｱｼｰﾄ)
W +4DV +5DV05.1994 - 08.19952NDｼｰﾄ (ﾍﾞﾝﾁ2ﾆﾝｶﾞｹ+ｽﾍﾟｱｼｰﾄ)
W +4DV +5DV08.1995 - 01.19972NDｼｰﾄ (ﾍﾞﾝﾁ2ﾆﾝｶﾞｹ+ｽﾍﾟｱｼｰﾄ)

Open full screen pictureOpen full screen picture
Up to the top

0851051697
0851052097
0851061212
87840N - cover, retractor RH
87841N - cover, retractor LH
87848M - cover, belt anchor
87850 - bolt, seat belt
87851E - washer, plain
87854M - spacer, seat belt
88810M - cover, retractor second LH
88840B - bolt
88842M - belt assembly, rear seat buckle
88842MA - belt assembly, rear seat buckle
88844 - belt assembly, rear seat tongue
88844M - belt assembly, rear seat tongue RH
88845M - belt assembly, rear seat tongue LH
88850 - belt set, rear seat center

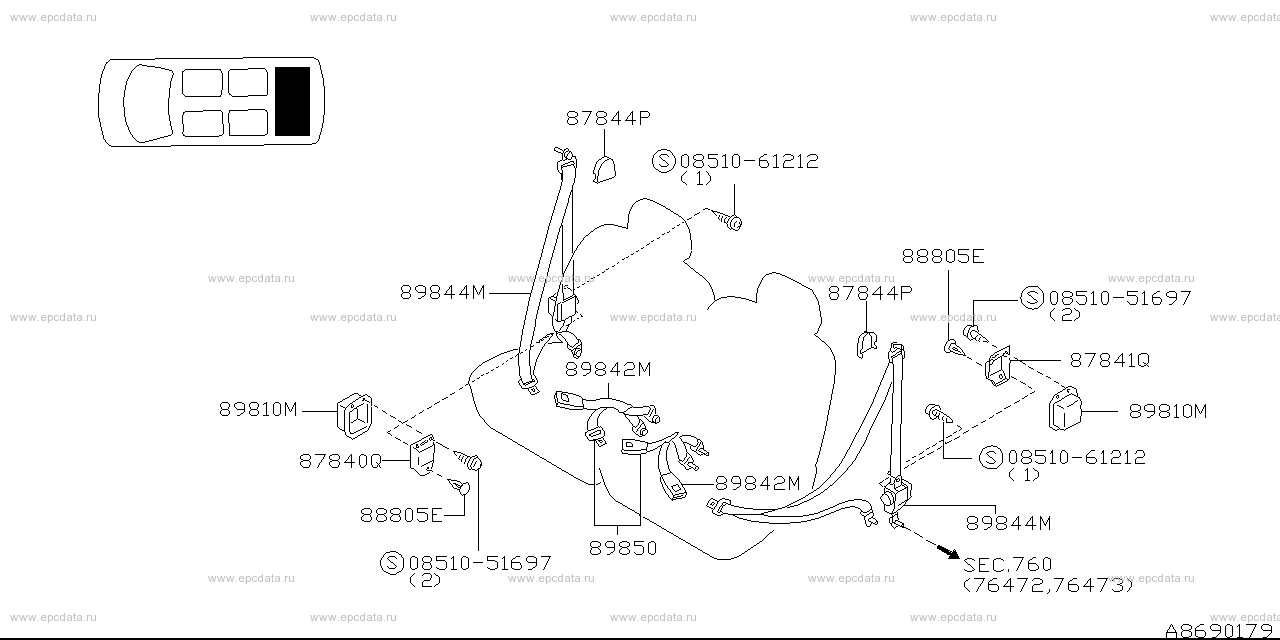

Applies for modelsManufacture periodSpec
W +4DV +5DV08.1993 - 05.1994３ＲＤシート
W +4DV +5DV05.1994 - 08.1995３ＲＤシート
W +4DV +5DV08.1995 - 01.1997３ＲＤシート

Open full screen pictureOpen full screen picture
Up to the top

0851051697
0851061212
87840Q - cover, retractor RH
87841Q - cover, retractor LH
87844P - cover, belt anchor
88805E - clip
89810M - cover, retractor third
89842M - belt assembly, 3RD seat buckle
89844M - belt assembly, tongue 3RD seat
89850 - belt set, third seat center

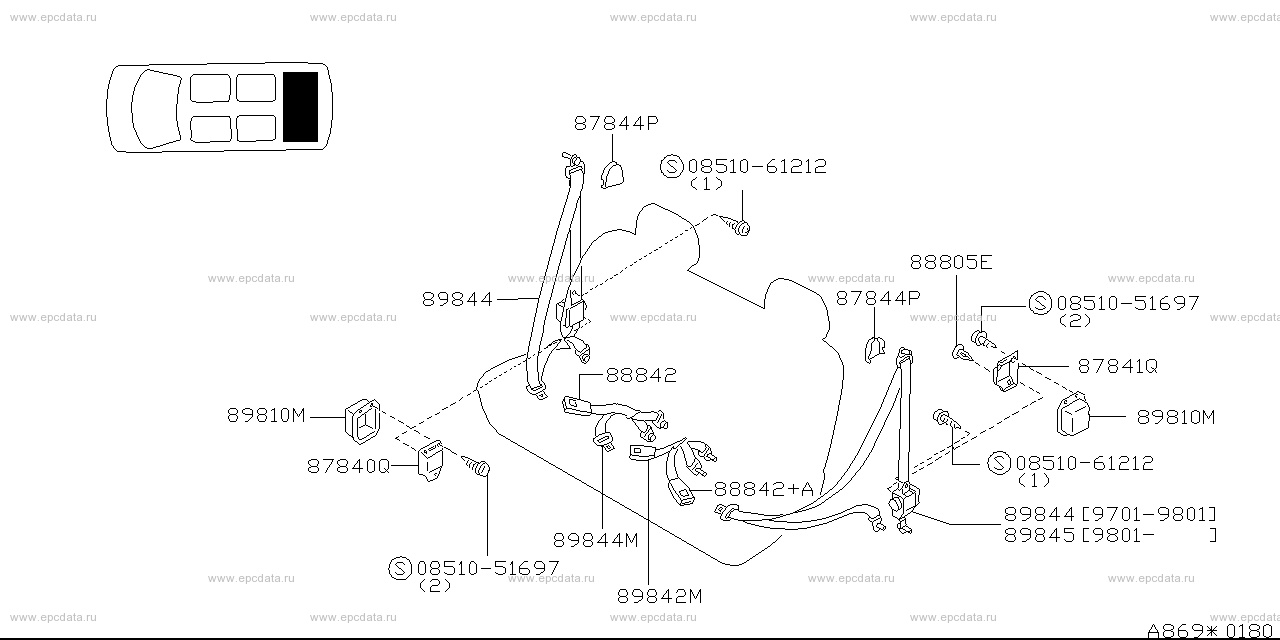

Applies for modelsManufacture periodSpec
W +4DV +5DV01.1997 - 01.1998３ＲＤシート

Open full screen pictureOpen full screen picture
Up to the top

0851051697
0851061212
87840Q - cover, retractor RH
87841Q - cover, retractor LH
87844P - cover, belt anchor
88805E - clip
88842 - belt assembly, rear seat buckle RH
88842+A - belt assembly, rear seat buckle RH
89810M - cover, retractor third
89842M - belt assembly, 3RD seat buckle
89844 - belt assembly, tongue third seat RH
89844M - belt assembly, tongue 3RD seat
89845 - belt assembly, tongue third seat LH
